Barbecue Controller 4000
A smart device that precisely controls charcoal grill temperature to create perfectly slow-cooked pulled pork every time.
Features

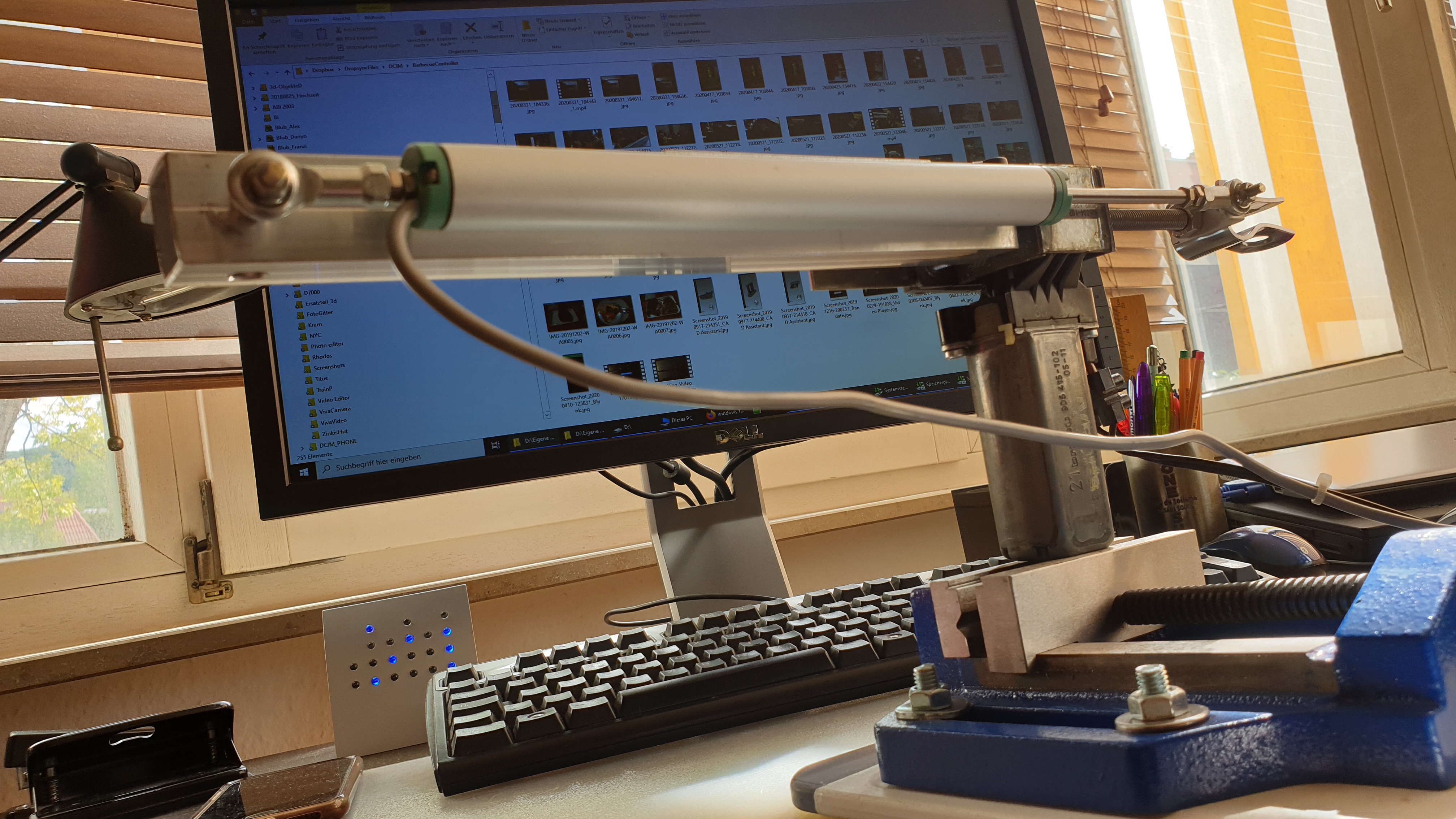

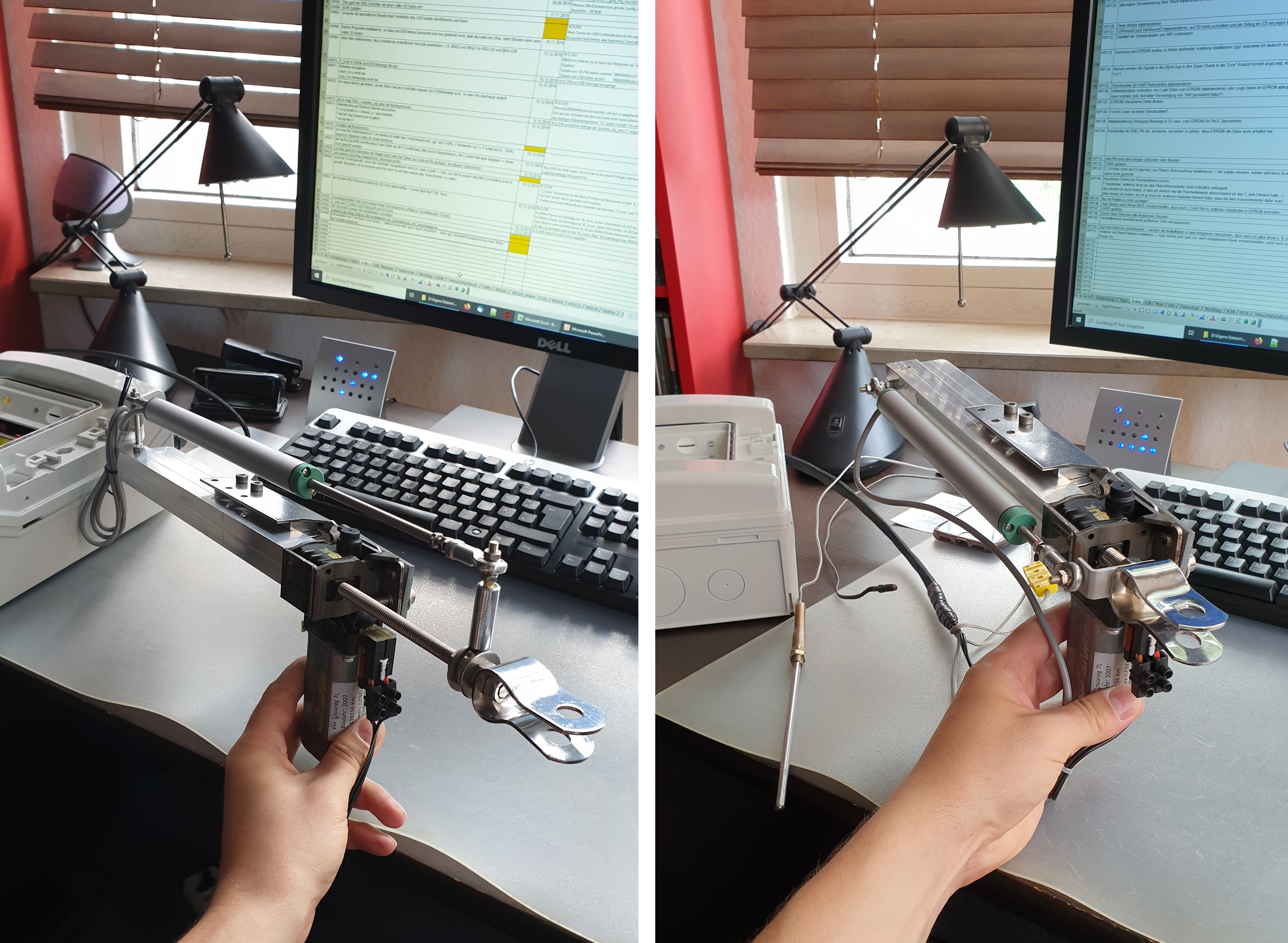

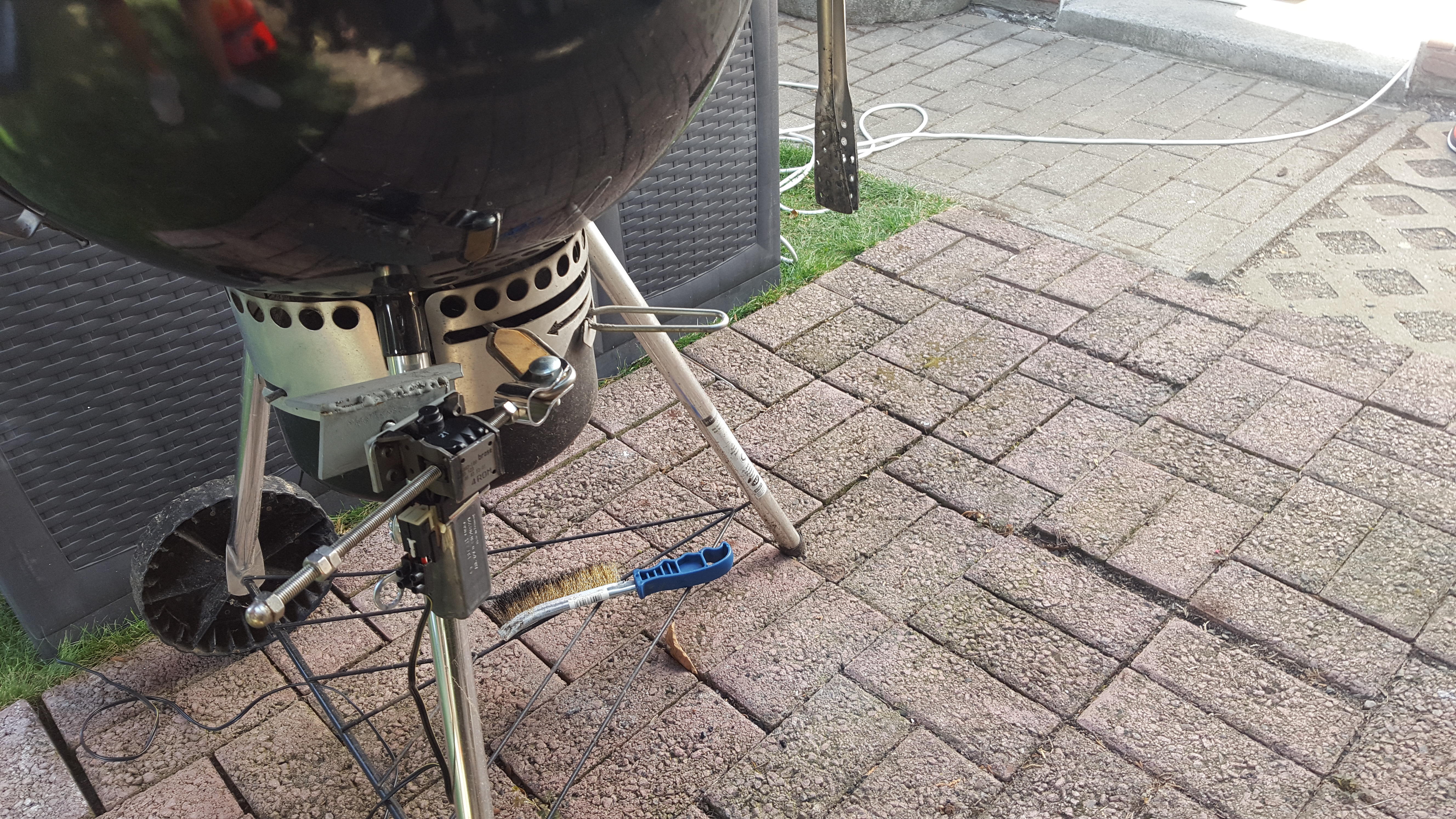

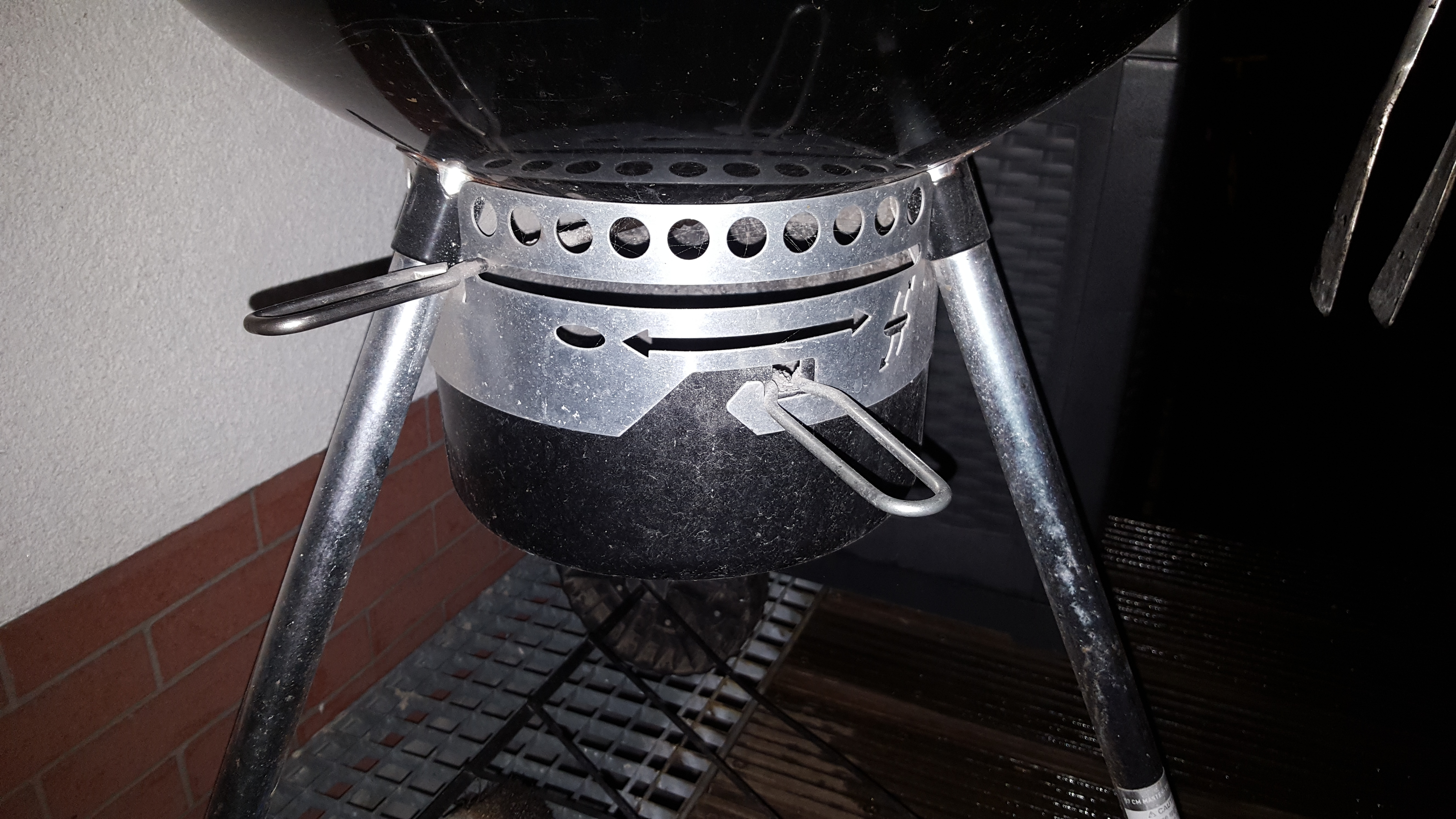

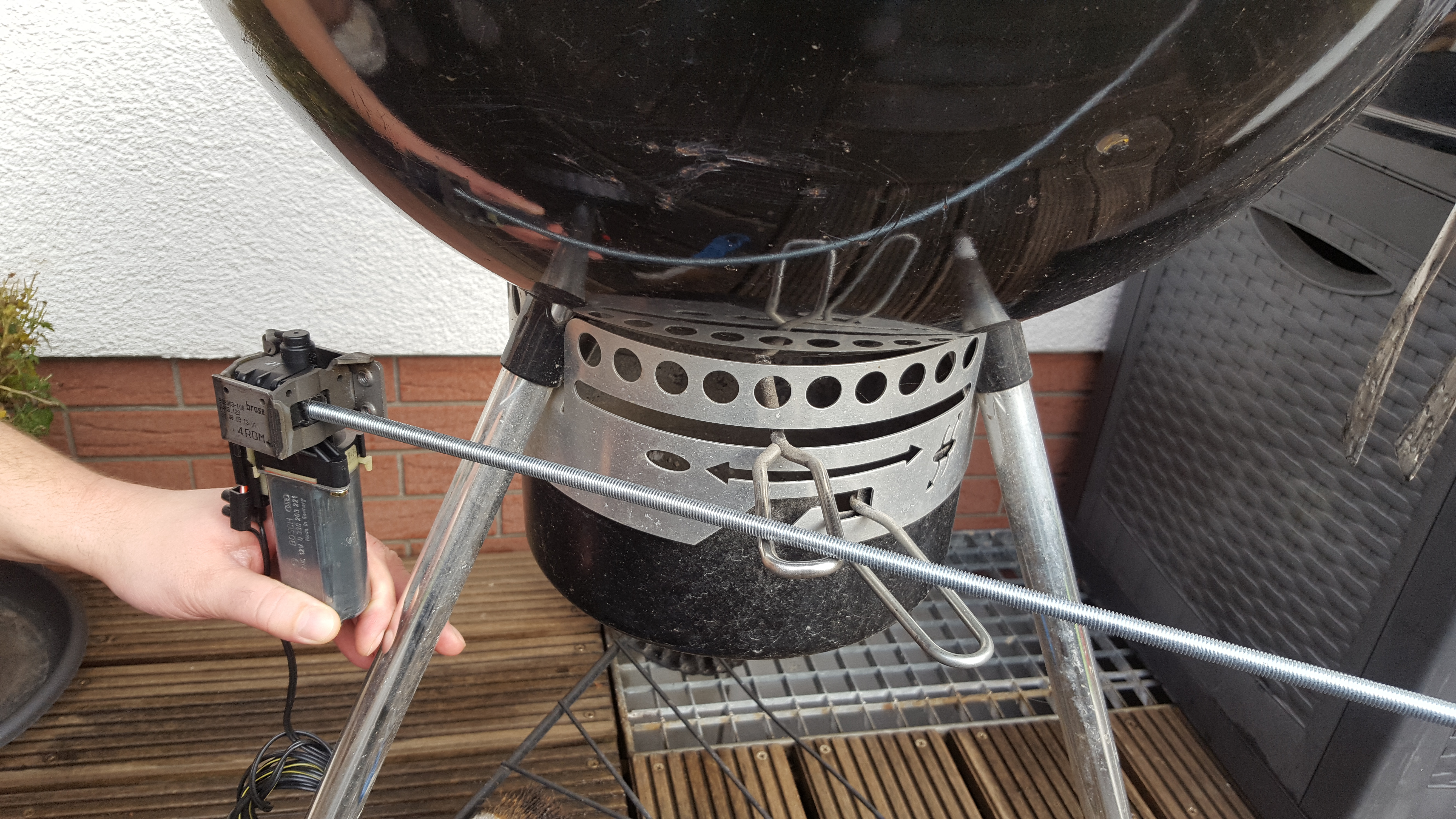

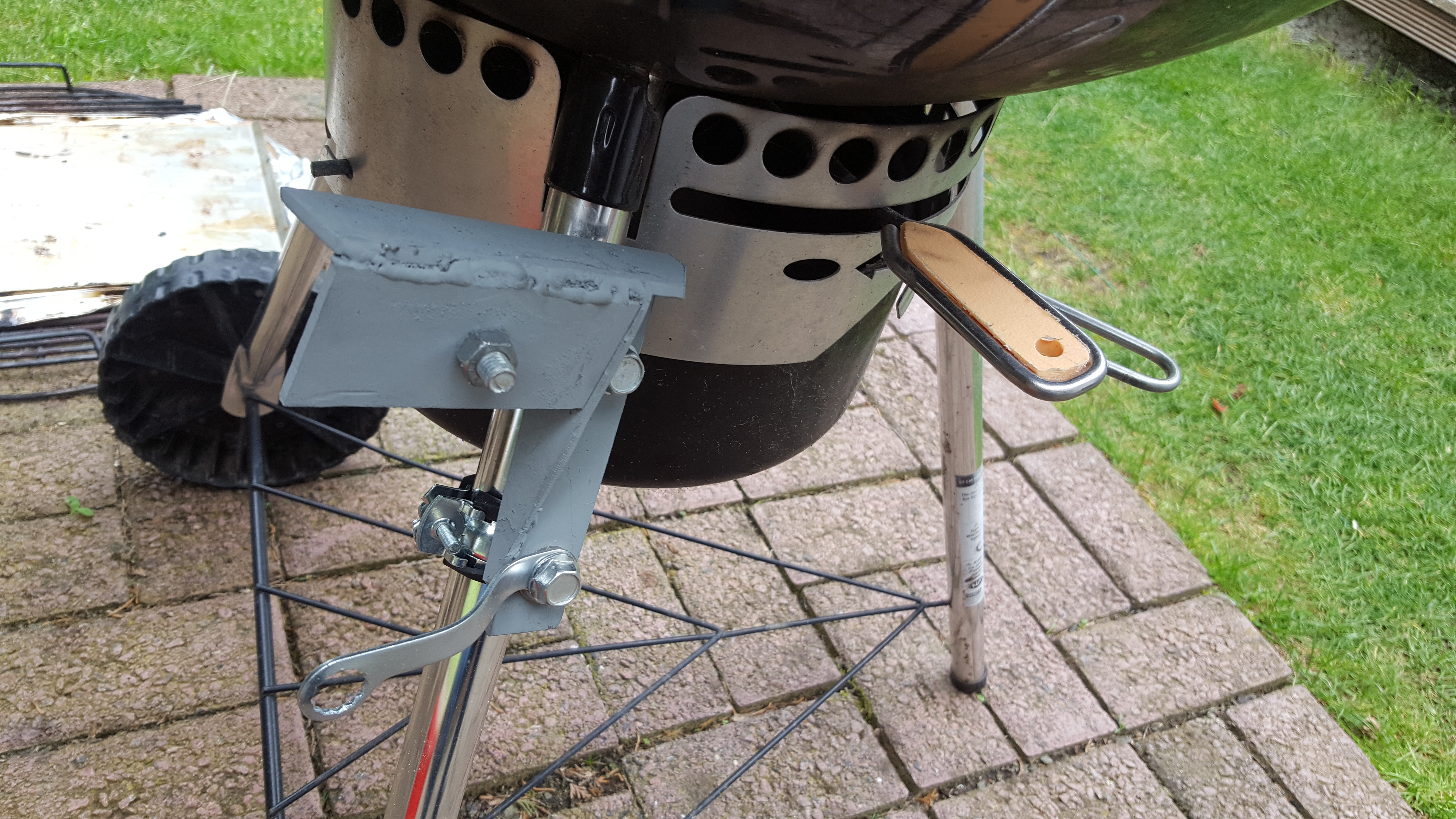

- Control the air flow to a charcoal grill

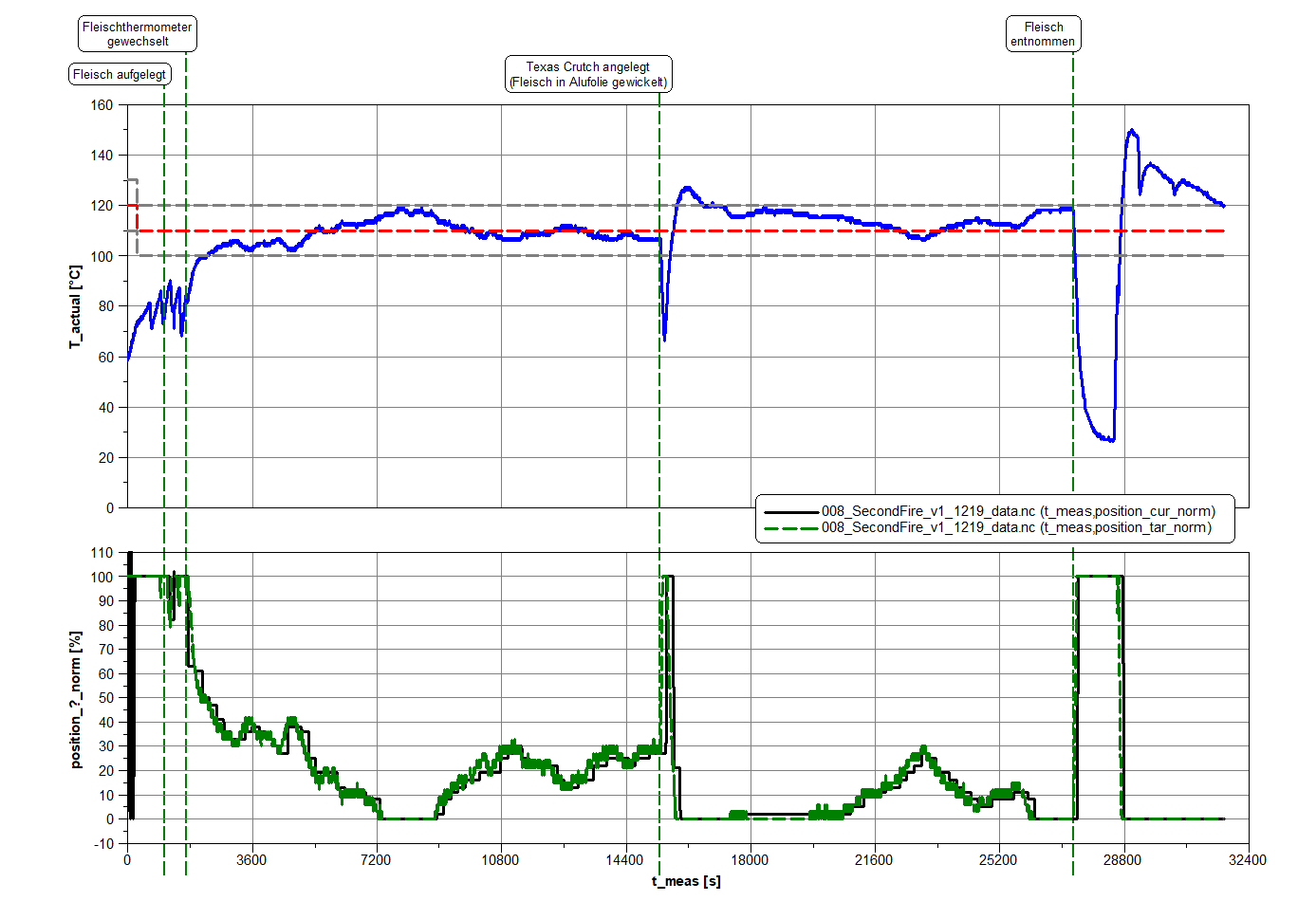

- Temperature control of grill gas temperature
- Measure meat temperature and shutdown grill when target is met
- Lid opening detection

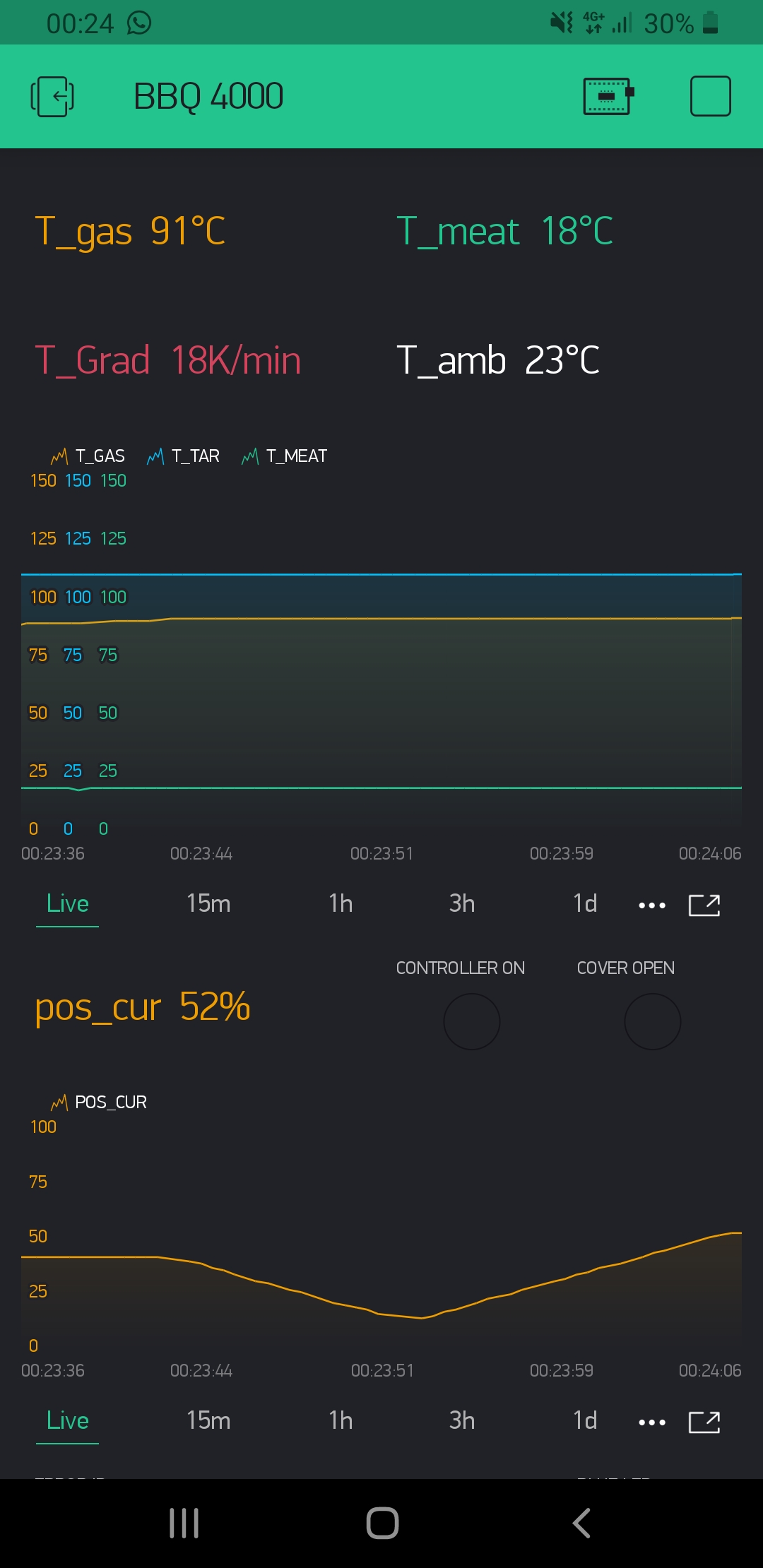

- WiFi Connectivity for remote status control via Blynk App
- Transfer of detailed measurement data via USB

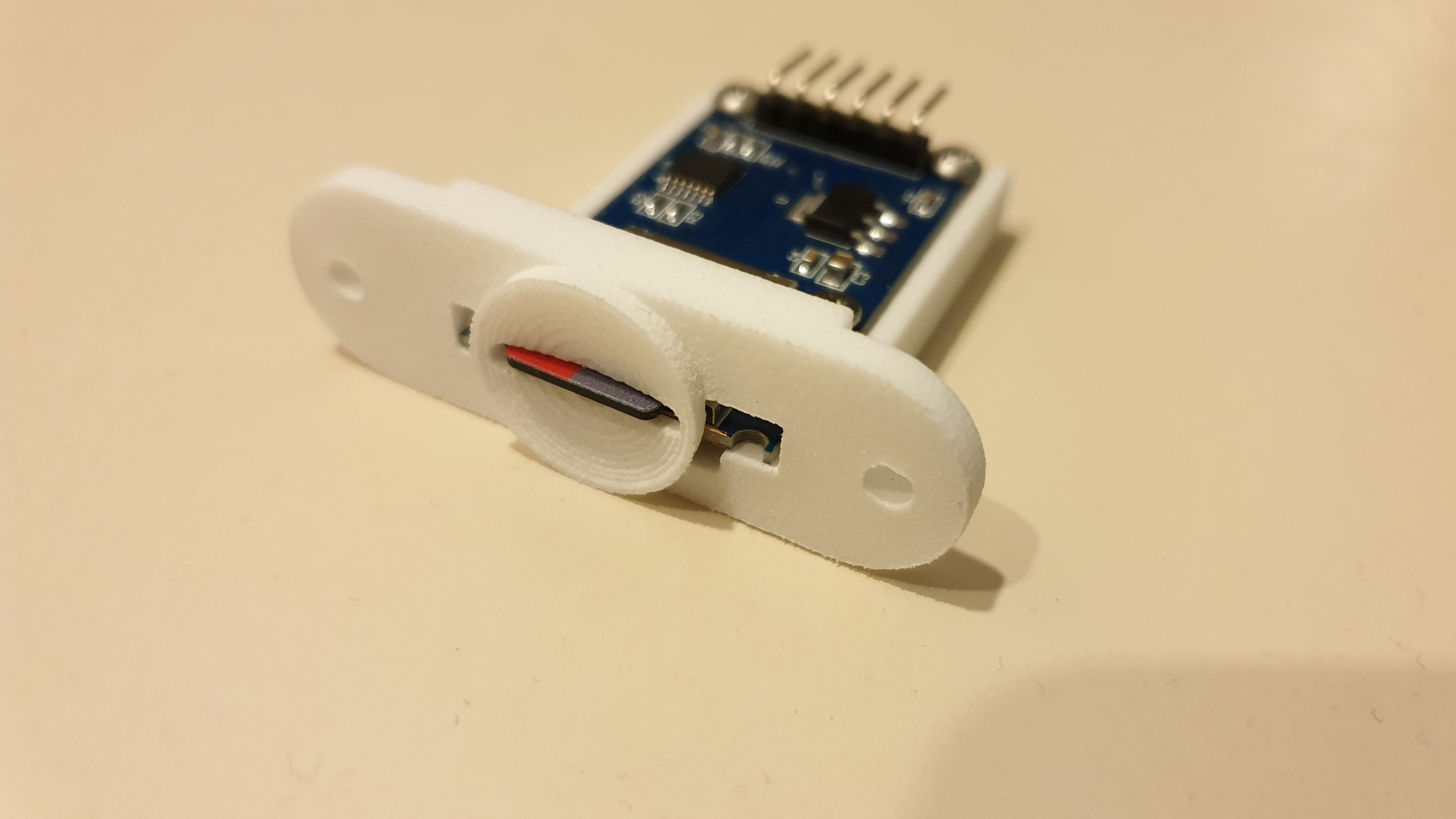

- Storage of detailed measurement data on SD card
Main Components

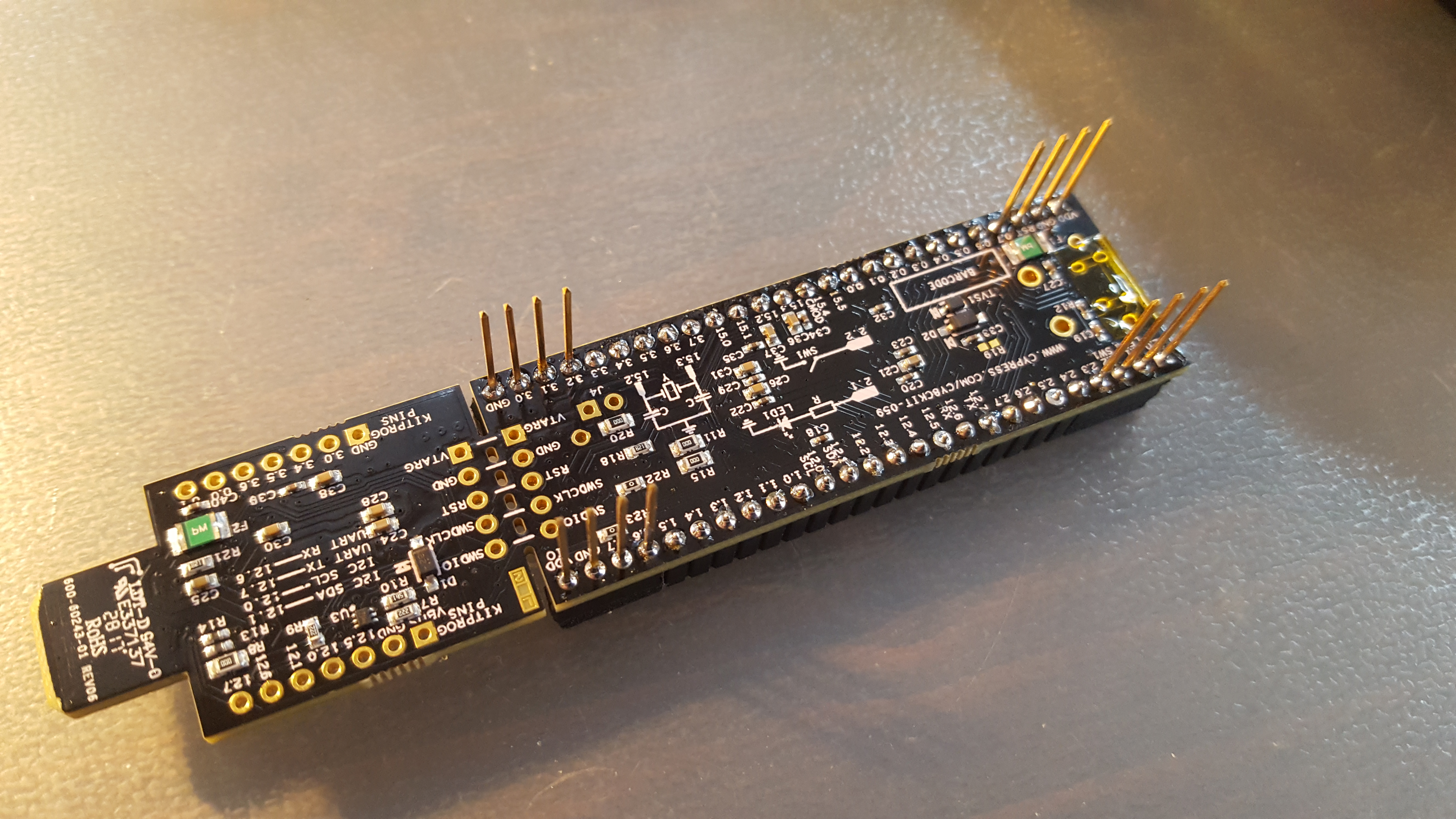

- 1x CY8CKIT-059 PSoC 5LP developement board

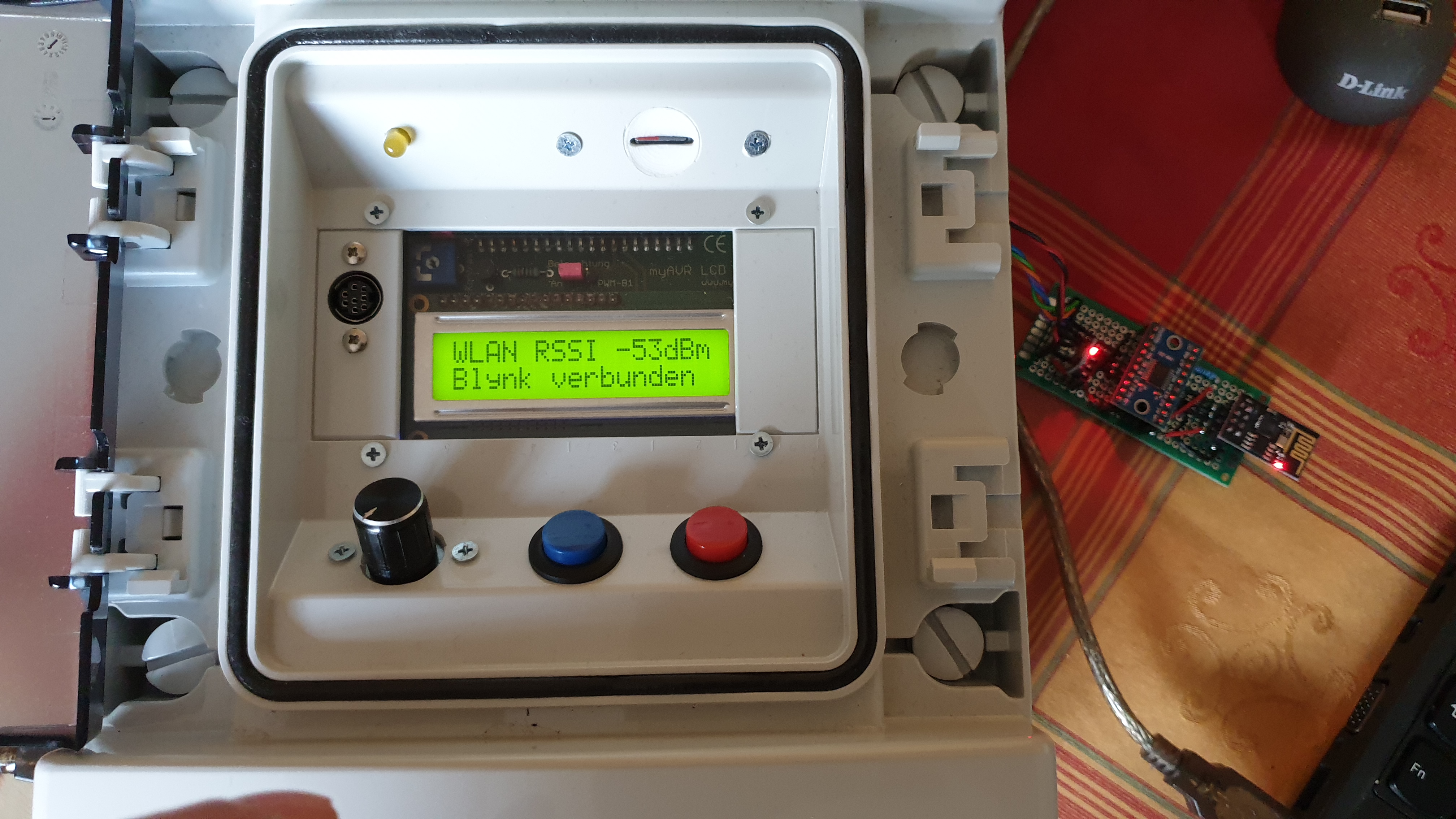

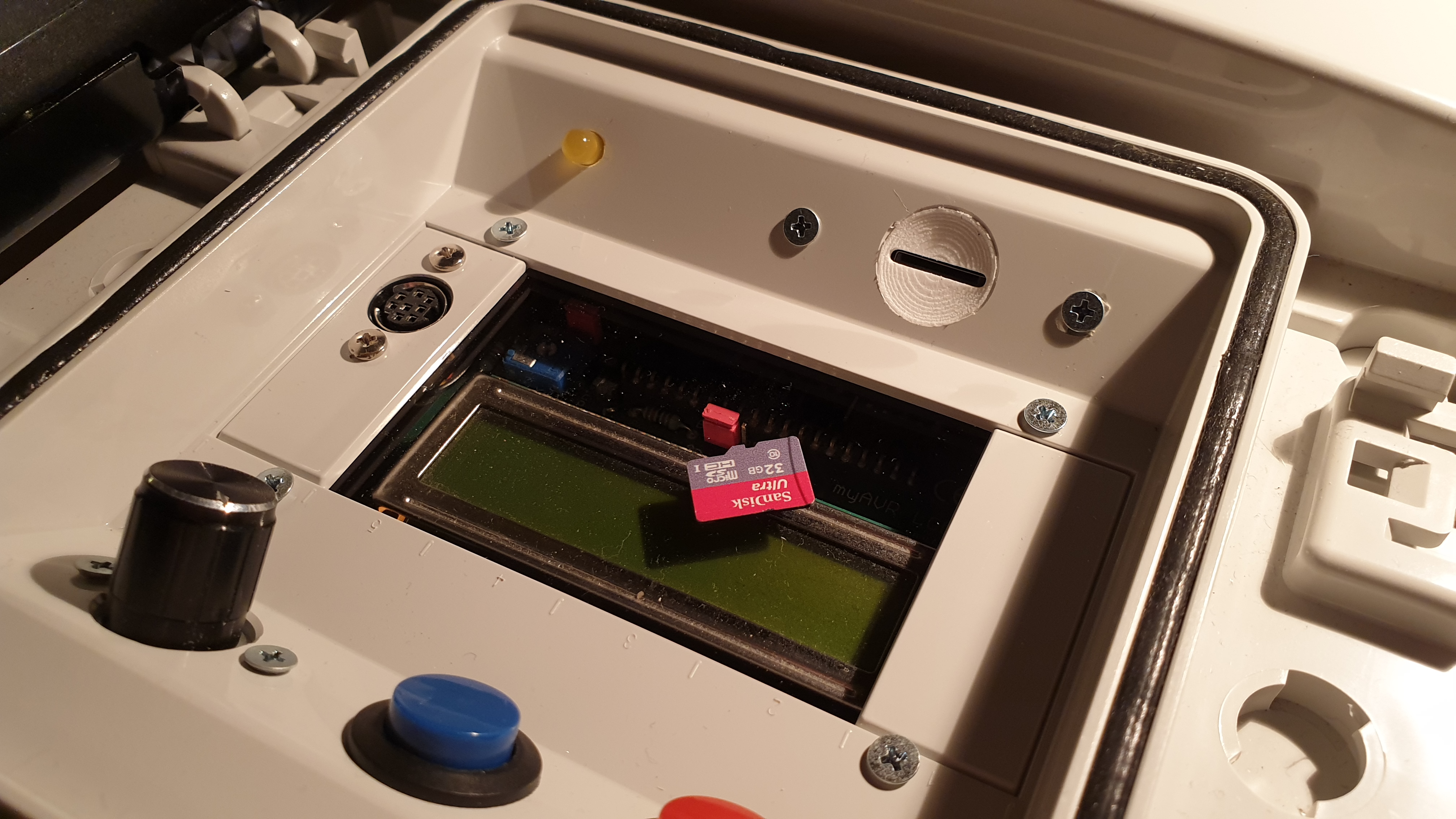

- 1x LCD 1602
- 1x Pololu G2 High-Power Motor Driver 24v21
- 3x Max6675 Temperature Sensing Module

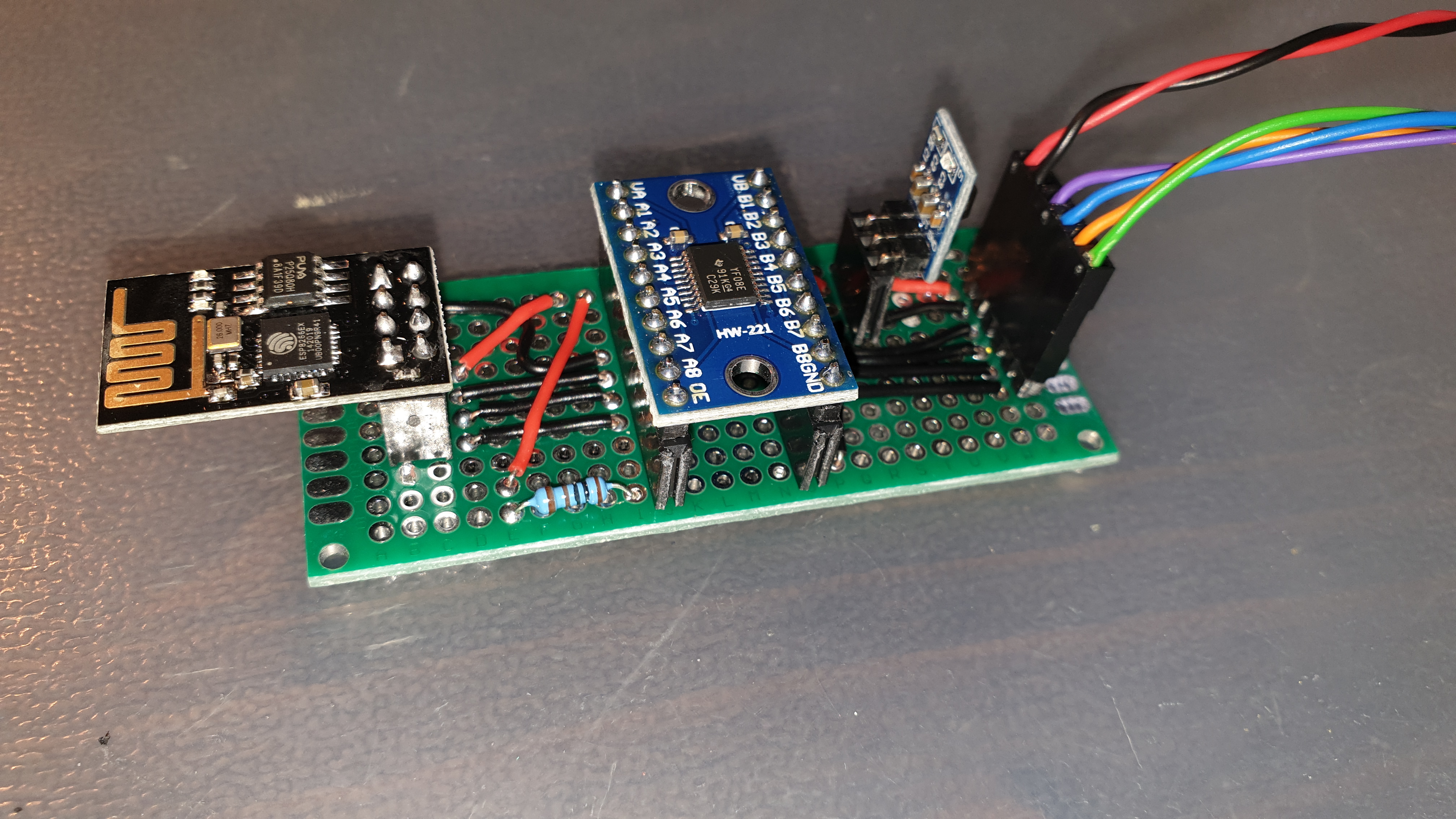

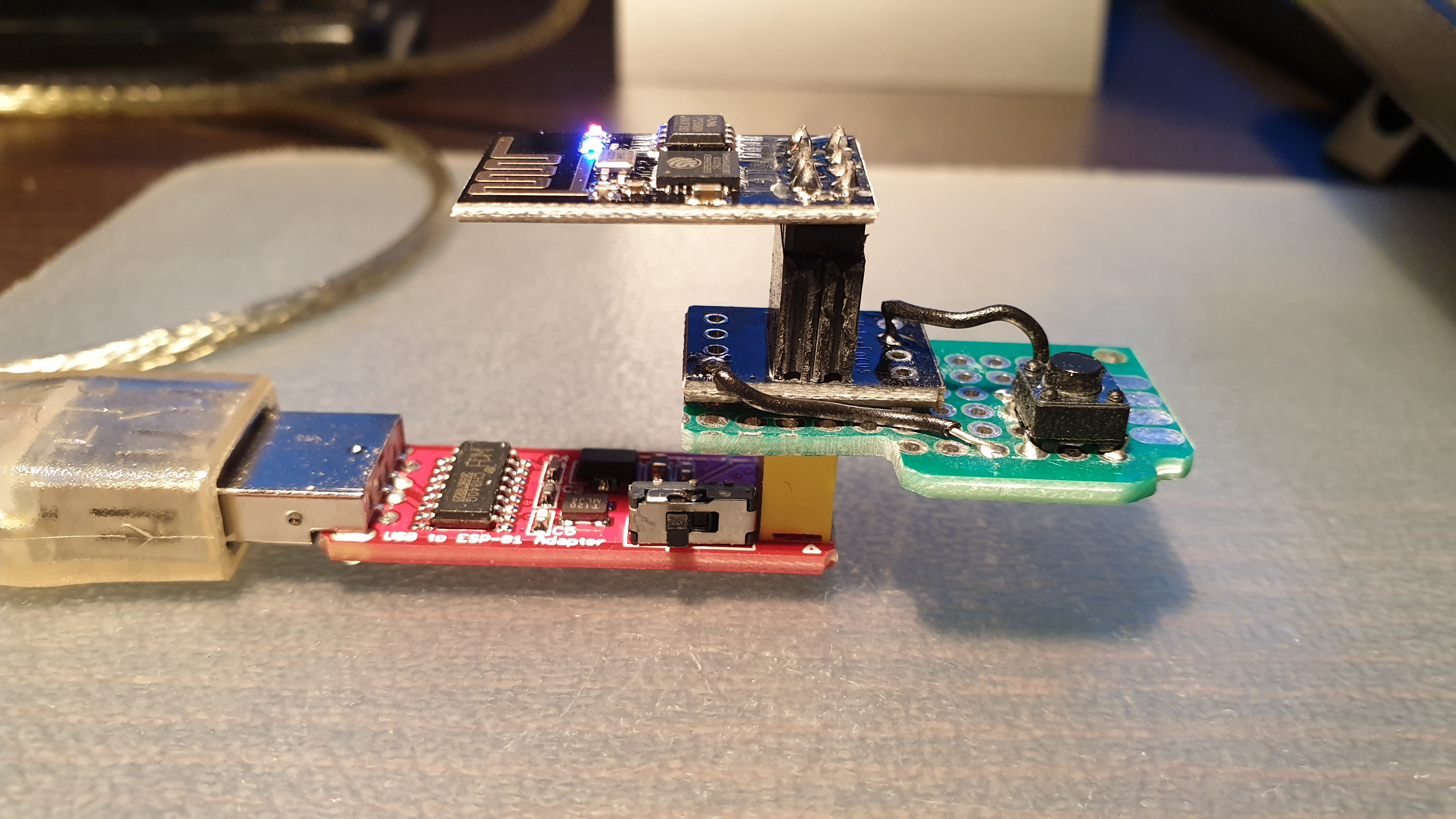

- 1x ESP8266 ESP-01S
- 1x TXS0108E Logic Level Converter

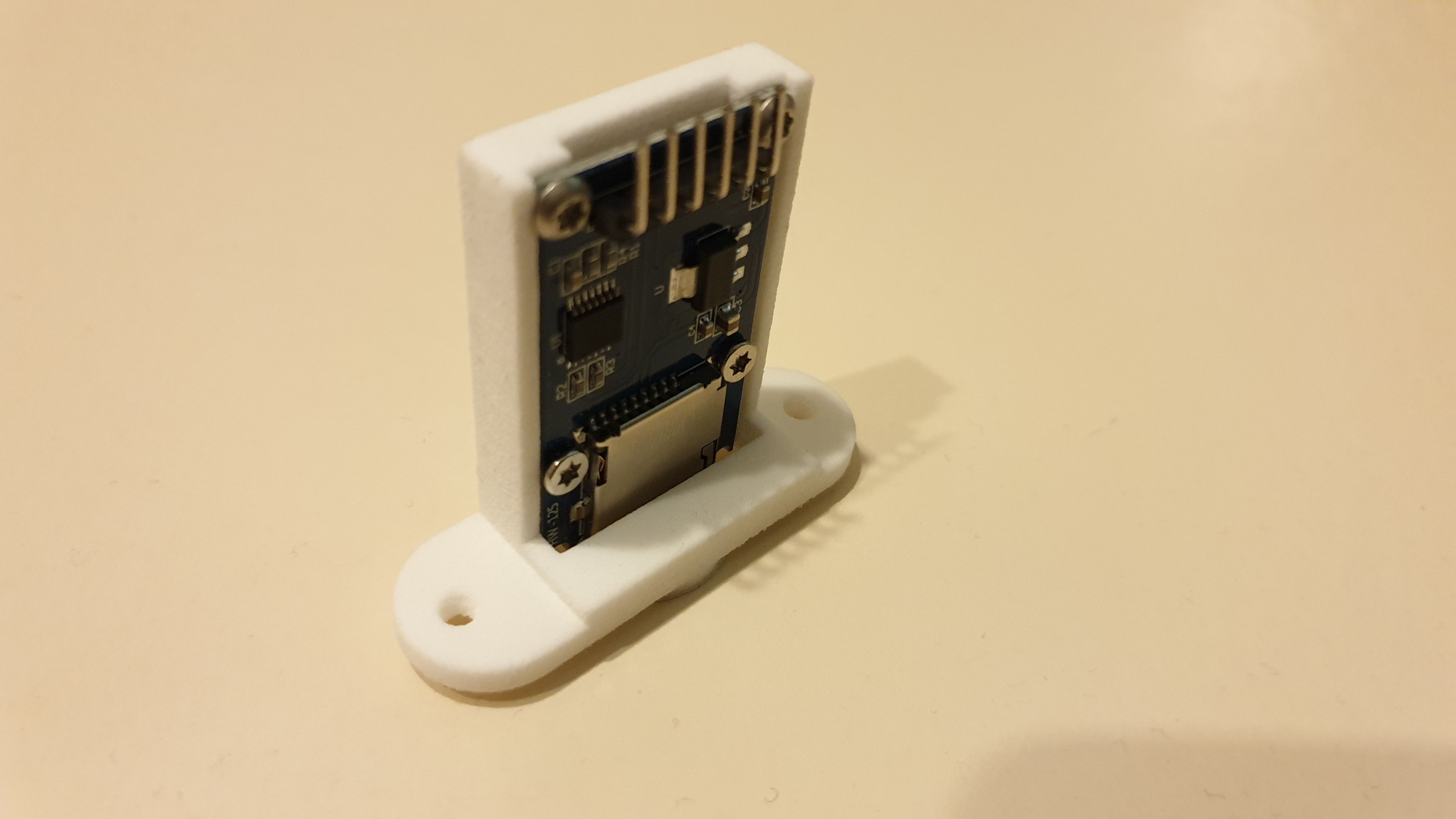

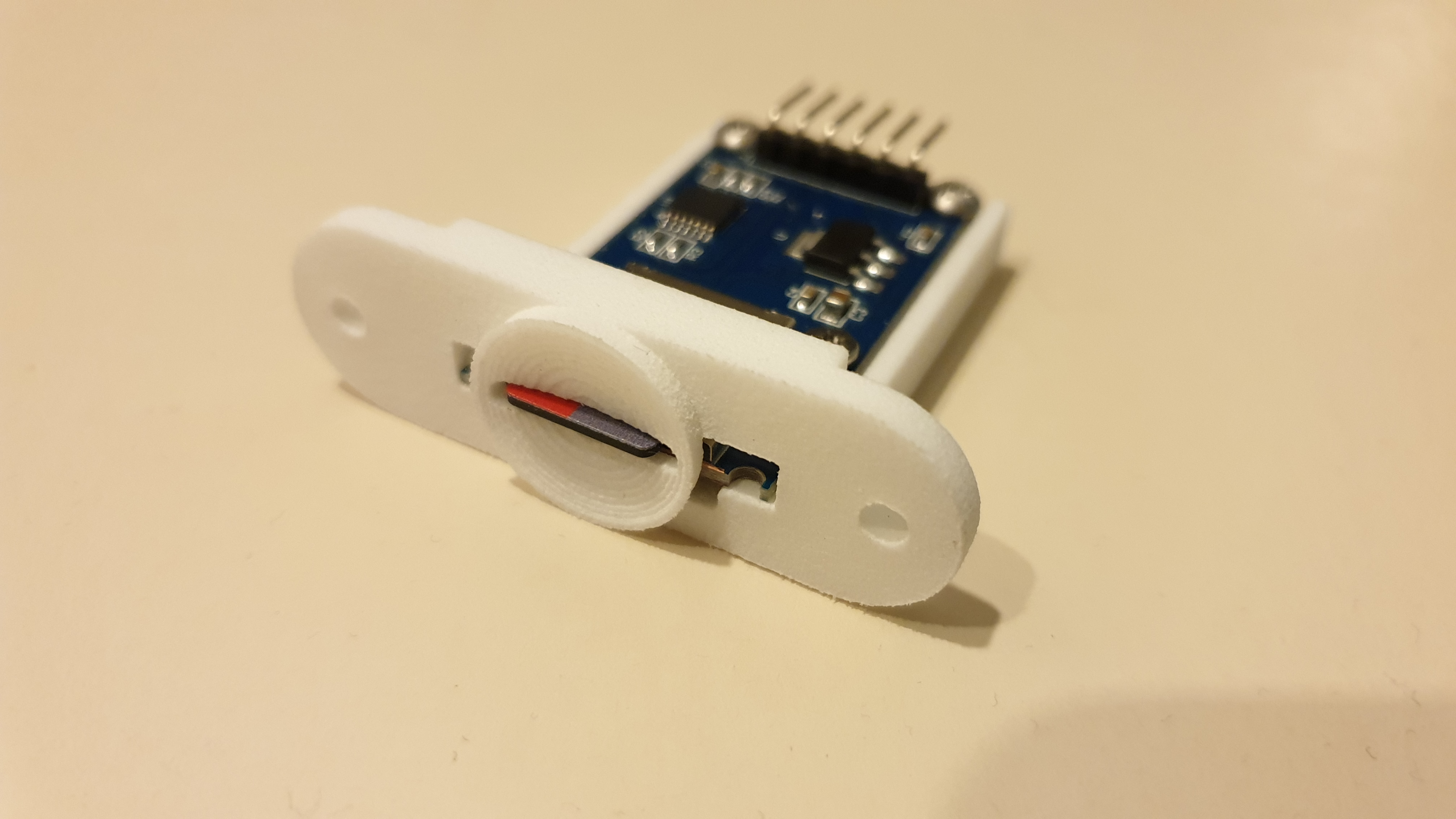

- 1x SPI Reader Micro SD
Programming languages
- C
- Python
The Blockdiagram is an essential tool while building the prototype on a bread board or via direct pinning in an early project phase.
